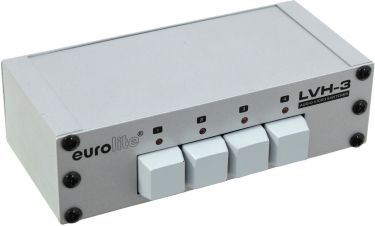

Eurolite LVH-3 AV switch

10A20B32 | 81013203

~~599,00DKK~~ 430,00DKK

The price includes 25% Danish VAT

Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.

In stock
Delivery time: 1 - 3 workdays.

This article is in stock, but not in our shop.
You are welcome to write in the comment field that you want to pick up the article yourself. We will contact you when the article is ready for collection in our shop.
Shipment charges are deducted when you collect the article in our shop.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

Manual AV switch 4:1

Manueller AV-Umschalter 4:1

Video and stereo audio signal switching from four sources to one output
Switching via durable keyboard-style buttons
Active channel indication via control LED
Block terminals for remote control
NTSC and PAL compatible
High quality gold-plated RCA connectors
Super compact metal housing

Power supply:	12-24V DC 100 mA
Power connection:	Mains input via screw terminal Mains input via coaxial power connector (M) mounting version
Frequency range:	10 - 10000000 Hz
S/N ratio:	>-95 dB
THD:	<0.01 % at 1 kHz
Dimensions:	Width: 14.6 cm Depth: 9 cm Height: 4.2 cm
Weight:	0.44 kg
Video:
4 x inputs:	1 Vpp/ 75 ohms, composite RCA
1 x outputs:	1 Vpp/ 75 ohms, composite RCA
Off attenuation:	>78 dB
Differential gain:	0.1%
Differential phase:	<0.3°
Audio:
4 x inputs:	10 kohms, stereo RCA
1 x output:	75 ohms, stereo RCA
Gain:	nominal 0 dB
Input level:	-10 dBV nominal
Headroom:	>20 dB/ -10 dBV
Off attenuation	>74 dB
Crosstalk:	blow noise floor (inputs terminated)
