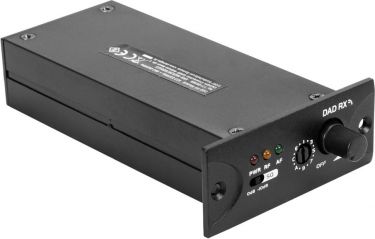

Omnitronic DAD Receiver Module

10A99A18

469,00DKK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

Receiver module for UHF frequencies (microphone, bodypack + audio link module)

For installation into the DAD-4RX 4-channel receiver housing
For retrofitting the MOM-10BT4 modular PA system
For wireless audio transmission with DAD transmitter modules and other components
16 selectable UHF frequencies (823-832 and 863-865 MHz)
LEDs for carrier and audio signal
Operating range up to 30m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
1 x receiver, 1 x user manual, 1 x declaration of conformity

Type:	Receiver
Power supply:	12V DC 170 mA
Number of channels:	1
Frequency range:	40 - 18000 Hz
S/N ratio:	>80 dB
THD:	<0.1 % at 1 kHz
Sensitivity:	-95 dB
Range:	Range up to 30m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency stability:	± 0.001 %
Frequency selection:	16 switchable frequencies
Control elements:	Frequency selector switch, level control, Squelch control
Status LED:	Power, signal, level meter
Color:	Black
Dimensions:	Width: 7.1 cm Depth: 13.9 cm Height: 3 cm
Weight:	0.09 kg
