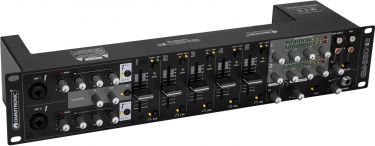

Omnitronic EM-550B MK2 Entertainment Mixer

10B04C93

3.269,00DKK The price includes 25% Danish VAT
Delivery time: 4-8 workdays.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

Multifunctional 5+2-channel installation mixer, black

5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
(19) 48.3 cm rack installation 2 U
For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable

Power supply:	230 V AC, 50 Hz
Power consumption:	9 W
Protection class:	Protection class II
Power connection:	Power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>65 dB line/phono
THD:	Line/phono <0.02 % at 1 kHz
Gain:	Microphone 52 dB Line 19 dB Phono 54 dB
Housing color:	Black
Control elements:	Power switch, regular talkover, source selector
Status LED:	Signal, master level meter, peak, channel source; CUE, talkover, ON AIR, routing
Connections:	Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line/phono via 2 x stereo RCA Input: line via 9 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 2 x stereo RCA Output: headphones via 1 x 6.3-mm-jack (bal.) Output: booth via stereo RCA Output: rec. via 2 x stereo RCA
Channels:	Input channel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, , gain control, source selector, CUE switch Input channel: 3 x stereo with line-line switch via RCA, channel control via fader, , gain control, source selector, CUE switch Microphone channel: 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, 3-band tone control EQ, ON AIR switch, talkover switch Master output: 2 x stereo via XLR or RCA, channel control via rotary dial, 3-band tone control EQ Rec. output: 2 x stereo via RCA, NO MIC switch Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function Booth output: 1 x mono + stereo via RCA, channel control via rotary dial Input channel: 1 x stereo via RCA, channel control via rotary dial
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48.3 cm Depth: 14.8 cm Height: 8.9 cm
Weight:	3.10 kg
