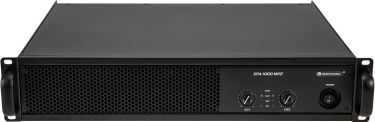

Class AB PA amplifier with limiter, 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms)
2 level controls
Signal inputs via XLR or RCA connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Class AB circuitry
(19) 48.3 cm rack installation possible 2 U
Highly efficient air flow from front to rear
The device is cooled by temperature-controlled fan
1 x amplifier, 1 x power cord, 1 x user manual, 4 x foot
Power supply:
230 V AC, 50 Hz
Power consumption:
710 W 1/8 power
IP classification:
IP20
Protection class:
Protection class I
Output power:
2 x 500 W RMS (4 ohms) 2 x 300 W RMS (8 ohms) 1000 W RMS bridged (8 ohms)
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Device fuse:
5 x 20 mm, F 8 A fuse serviceable
Frequency range:
20 - 20000 Hz
S/N ratio:
>95 dB
THD:
<0.05 % at 1 kHz
Cooling:
2 x temperature-controlled fan , air flow from front to rear
Impedance:
Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Housing color:
Black
Circuitry:
Class AB
Slew rate:
>20 V/µs
Damping factor:
>200
Control elements:
Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls:
Softstart; DC voltage; VHF; short-circuit; limiter; overheat
Status LED:
Power, signal, clip, protect
Connections:
Input: line via 2 x 3-pin XLR (F) mounting version Input: line via stereo RCA Output: speaker via 2 x speaker built-in socket (F) Output: speaker via screw terminal
Input sensitivity:
1 V
Housing design:
(19") 48.3 cm rack installation possible 2 U
Mounting depth:
33.2 cm
Dimensions:
Width: 48.3 cm Depth: 36.8 cm Height: 8.8 cm
Weight:
10.40 kg
