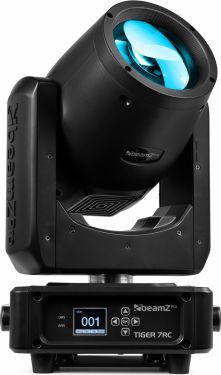

| | The new Tiger 7RC is a compact moving head that generates impressive light output with its 7R 230W high-intensity discharge lamp. This versatile moving head features a comprehensive range of effects, including colour mixing, a frost effect, various gobos and a prism, giving users precise control over their lighting designs.
The Tiger 7RC includes a gobo wheel equipped with 14 patterns plus an open position and a colour wheel with 14 colours plus an open position, offering endless creative possibilities. Enhancing its capabilities further is a 8-facet rotating prism, enabling the creation of captivating and dynamic light displays. Operating seamlessly in DMX or stand-alone mode, the Tiger 7RC offers flexibility in set-up and operation. Designed for simplicity and ease of use! - 230W 7R High Intensity discharge bulb
- 14 Gobos + open beam
- 14 Colours + open
- Gobo shake effect
- Frost effect lens
- Rotatable 8 facet prism
- Motorized focus
- Mechanical shutter and adjustable speed strobe effect
- Mechanical dimmer
- DMX and Stand-alone mode
- Automatic pan/tilt correction
- Reset function
- Control panel with LCD display
- DMX in/output via 3/5-pin XLR
- P-Con input/output (cable included)
- Quick lock omega clamp included (2x)
| Colour temperature | 8000K | | Light source | MSD 7R 230W bulb | | Colour wheel | 14 colours + open | | Beam angle | 1° | | Illuminance | 197.226 lx @ 5m | | Head movement: Pan | 540° | | Head movement: Tilt | 180° | | Static gobo: Quantity | 14 | | Gobo shake | Yes | | Prisma 1 | 8 Facet | | Frost filter | Yes | | Flash rate per second | 1 - 10Hz | | Modes | Automatic programs, DMX, Manual, Master/Slave | | Sound to light mode | Yes | | DMX channels | 16, 20 | | DMX connection | 3-pin XLR, 5-pin XLR | | Display | LCD | | IP rating | IP20 | | Cooling | Temperature controlled fan | | Power plug | P-Con | | Power consumption | 2.390 - 1.176A | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 280 x 240 x 470mm | | Weight (kg) | 11,55 | | Included accessories | Mounting bracket, Power cable |
