PSSO QDA-4400 4-Channel Amplifier
Click to enlarge


design/printicon.gif
Print

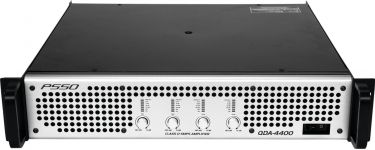

PSSO QDA-4400 4-Channel Amplifier

10A20A69 | 10451695


10.299,00DKK 8.609,00DKK

The price includes 25% Danish VAT


Delivery time: 4-8 workdays.

Butikkens adresse og åbningstid er:
DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort
Butik og Telefon
Tirsdag, Onsdag og Fredag
10.00 til 17.30
Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag
09:00 til 17:30
Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

Class D multi-channel PA amplifier with SMPS, 4 x 1100 W RMS (4 ohms), 4 x 650 W RMS (8 ohms)

Verstärker mit Schaltnetzteil, 4 x 1100 W / 4 Ohm, 4 x 650 W / 8 Ohm

  • 4-channel PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Level control per channel
  • Input sensitivity adjustable
  • LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs
  • Rugged steel chassis with aluminum front panel
  • Highly efficient Air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • (19) 48.3 cm rack installation 2 U
  • 1 x amplifier, 1 x power cord, 1 x user manual
Power supply:100-240 V AC, 50/60 Hz
Power consumption:830 W 1/8 power
Output power:4 x 1100 W RMS (4 ohms)
4 x 650 W RMS (8 ohms)
2 x 2000 W RMS bridged (8 ohms)
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>100 dB
THD:<0,1 % at 1 kHz
Cooling:2 x temperature-controlled fan , Air flow from front to rear
Impedance:Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Gain:39,9 dB
Circuitry:Class D
Slew rate:>10 V/µs
Damping factor:>500
Crosstalk:>65 dB
Control elements:Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch
Controls:Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter
Status LED:Power, level meter, clip, protect
Connections:Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F)
Input sensitivity:0,775 V; 1,0 V; 1,81 V , switchable; 32 dB; 37 dB; 39,3 dB , switchable
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 46,1 cm
Height: 8,9 cm
Weight:9,50 kg
