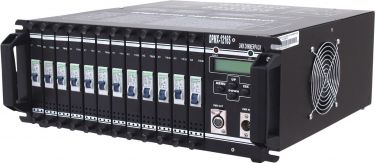

12 x 16A dimmer, service friendly modules, 12 safety sockets 12 x 16-A-Dimmer, servicefreundliche Module, 12 Schutzkontakt-Ausgangsdosen - 12-channel dimmer pack with up to 16 A output per channel
- Modular design of the individual dimmer modules for quick and easy change
- 3-phase or 1-phase power supply
- Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
- Curve function for selection of different fade modes
- Dim or switch option assignable to each channel
- DMX Fail function: automatic digital input check to detect DMX signal errors
- Manual mode for dimming capability without an external lighting controller
- Synchronization of several devices possible via DMX
- Automatic circuit breaker per channel (type C)
- Channel outputs on the rear panel via safety sockets
- Only for professional use
- 12 integrated show programs
- Preprogrammed 12 scenes/chases
- Control via stand-alone; DMX
- (19) 48.3 cm rack installation 4 U
- For application areas such as: Trade fair and shop fitting; stage; theater; rental
- Very quiet working noise
- 1 x device, 1 x user manual
| Power supply: | 230/380 V AC, 50 Hz | | Output power: | Max. 43470 W Max. 3680 W per channal | | Output current: | Max. 189 A | | Power connection: | Mains input via screw terminal | | Power output: | 12 x safety contact (F), hinged lid mounting version | | Power output fuse per channel: | C 16 A fuse resettable | | Programs: | Preprogrammed 12 scenes/chases | | DMX channels: | 12 | | DMX input: | 1 x 3-pin XLR (M) mounting version | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Control: | Stand-alone; DMX | | Control channels: | 12 | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 4 U | | Dimensions: | Width: 48.3 cm Depth: 52.0 cm Height: 17.8 cm | | Weight: | 17.70 kg | | Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
   |
In stock
