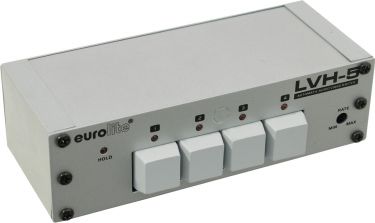

| | Automatic video switch 4:1 Automatischer Video-Umschalter 4:1 - Automatic switching of video
- Switching time adjustable
- 4 inputs with feed-through output via BNC plugs
- Each channel with manual override button and LED indicator
- Open collector outputs for controlling other units
- NTSC and PAL compatible
- Super compact metal housing
- 12-24 V DC power supply via block terminals (PSU not included)
| Power supply: | 12-24 V DC 110 mA | | Frequency range: | 10 - 10000000 Hz | | S/N ratio: | >70 dB | | Crosstalk: | >55 dB | | Dimensions: | Width: 14,6 cm
Depth: 7,8 cm
Height: 4,2 cm | | Weight: | 400 g | | 4 x video inputs: | 5 kohms (bridged), 75 ohms (terminated), BNC | | 5 x outputs: | 75 ohms, BNC (4 feed-through outputs, 1 amplified output) | | 4 x open collector outputs: | 50 mA, block terminals | | Gain: | 0 dB/ 75 ohms terminated | | Operating signal level: | 0.5-1 Vpp | | Off attenuation: | 65 dB | | Differential phase: | 0.3° |
 | | | | |
