4 powerful LEDs 1 W SMD 8072 cold white (CW) LEDs controlled separately
1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x foot control, 1 x remote control, 2 x battery, 2 x mounting bracket, 2 x knurled screw, 1 x bag, 2 x washer
Durable aluminum version
Tube diameter: Ø 35 mm
Adjustable height
1 x user manual
Weight:
13.50 kg

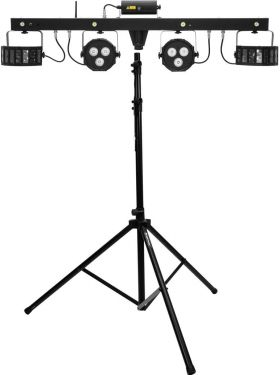

EUROLITE LED KLS Laser Bar FX Light Set
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
50 W
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Device fuse:
5 x 20 mm, F 1 A fuse replaceable
Lamp type:
LED lamp
Flash rate:
0 - 30 Hz
DMX channels:
3; 5; 9; 27
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; IR remote control; sound to light via microphone; wireless footswitch; master/slave function
Fixtures available for:
Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Colorchief
Housing color:
Black
Attachment system:
Tube: 1x Ø 35mm 2x mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Width: 109 cm Depth: 14.5 cm Height: 37 cm
Weight:
9.05 kg
Noise classification:
Class 2 (slight noise)
Light effect
LED type:
3 x 1 W SMD 8072 R/G/B
Spotlight
LED type:
3 x 3 W SMD 8072 3in1 RGB (homogenous color mix)
Beam angle:
13°
Beam angle (1/2 peak):
13°
Beam angle (1/10 peak):
20°
Foot control
Battery:
1 x 9.0 V E block 6LR61 alkaline manganese included
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
Laser
Laser class:
2M
Laser color:
R/G
Laser module:
Red (R) 100 mW 650nm Green (G) 30 mW 532nm
Bar
LED type:
4 x 1 W SMD 8072 cold white (CW)
Beam angle (1/2 peak):
7°
OMNITRONIC M-4 Speaker-System Stand
Maximum carrying capacity:
18 kg
Tube diameter sector:
38 - 35 mm
Height:
Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin
