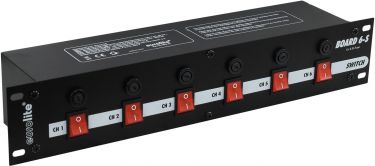

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Eurolite Board 6-S with 6x Safety-Plugs 10A19F44 | 70008275
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | 6-fold switching panel for separate switching of 6 safety sockets Panel mit 6 Schaltern zum getrennten Schalten von 6 Schutzkontaktdosen - Fully cabled housing with 6 safety sockets
- 6 switches
- Control via on/off switch on device
- With profile rails suitable for (19) approx. 48 cm units
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 3680 W | | Output power: | Max. 1150 W per channal | | Output current: | Max. 5 A per channal | | Power connection: | Fixed power supply cord with safety plug | | Cable length: | Approx. 0,8 m | | Power output: | 6 x Safety contact (F), hinged lid mounting version fused | | Fuse: | 5 x 20 mm, F 6,3 A Fuse replaceable | | Control: | On/off switch on device | | Control channels: | 6 | | Diameter mounting holes: | 4 x Ø5mm | | Material: | Metal | | Color: | Black, matte | | Front panel width: | (19") approx. 48 cm | | Mounting height: | Approx. 9 cm (2 U) | | Mounting depth: | 120 mm | | Dimensions: | Width: 48,3 cm
Depth: 12,5 cm
Height: 8,9 cm | | Weight: | 2,00 kg |
   | | |
| | |
