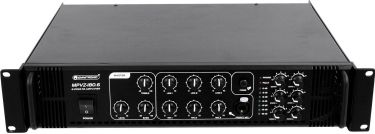

| | 6 zone PA mixing amplifier adjustable zones, 180 W RMS 6-Zonen-ELA-Mono-Mischverstärker, 180 Watt, Zonen regelbar - Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- (19) 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
- 1 x amplifier, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 360.00 W | | Protection class: | Protection class I | | Output power: | 180 W RMS | | Power connection: | Fixed power supply cord with safety plug | | Device fuse: | 5 x 20 mm, T 2 A fuse replaceable | | Frequency range: | 80 - 16000 Hz | | S/N ratio: | >75 dB microphone >85 dB line | | THD: | <0.5 % at 1 kHz | | Cooling: | Temperature-controlled fan , air flow from front to rear | | Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V | | Zone output: | 6 adjustable zones | | Circuitry: | Class AB | | Control elements: | Power switch, Master control, level control per channel, tone control, regular talkover | | Controls: | Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit | | Status LED: | Power, fault, level meter | | Connections: | Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: microphone via 2 x 6.3 mm plug (unbal.) Input: line via 3 x stereo RCA 0.3 V Output: line via 1 x stereo RCA Output: speaker via screw terminal | | Equalizer: | Master: 1 x 2-band tone control mono | | Material: | Metal | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm | | Weight: | 9.30 kg |

 | | |
