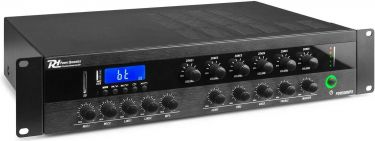

The PDW series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These fully featured, high power mixer amplifiers with 6 zone outputs are equipped with separate volume controls and features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. All PDW amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping center or any other public space.
PA amplifier with 6 zones and separate volume controls
Media player with FM Tuner, USB and SD slot
BT receiver for audio streaming
500W Class-D amplifier
100V/70V or 16, 8, 4 Ohm
Zone volume control
Bass/Treble/Echo control
Digital LCD display
XLR microphone input with switchable phantom power (24V)
6.3 mm microphone input with priority
2x RCA line inputs and 1x RCA line output
19 rack mountable (2U)
Product colour
Black
Playback options
BT streaming, USB, SD, FM radio
Output channels
6
Output power: Max
500W
Output power: RMS
400W
Impedance
4 Ohm, 8 Ohm, 16 Ohm, 70V, 100V
Frequency response
100Hz - 19.000Hz
THD
<1%
Signal-to-noise ratio: Line
>85dB
Signal-to-noise ratio: Mic
>80dB
Input level: Line
400mV
Input level: Mic.
10mV
Power supply
100-240VAC 50/60Hz
Dimensions (L x W x H)
310 x 420 x 95 mm (with rack ears: 480 mm)
Weight (kg)
9,90
Included accessories
Mounting bracket, Power cable
Bundle no.: 10107631
Set consisting of: 4 x BD50TW Wall Mount In/Outdoor Speaker IPX5 100V 1 x PDW500MP3 PA Mixer Amplifier 500W/100V 6 zones 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
Bundle no.: 10107604
Set consisting of: 4 x BD50TB Wall Mount In/Outdoor Speaker IPX5 100V 1 x PDW500MP3 PA Mixer Amplifier 500W/100V 6 zones 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
