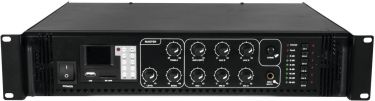

6-zone-PA mixing amplifier with audio player and remote control, switchable zones, 120 W RMS
6-Zonen-ELA-Mono-Mischverstärker mit MP3-Player & IR-FB, Zonen schaltbar, 120 Watt
Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs, independently switchable on the front panel
Output for low-impedance speakers (4-16 ohms)
SD card slot and USB port
Folder navigation and repeat functions (1, All)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-digit LED level meter
Master control for the output signal
(19) 48.3 cm rack installation 2 U
The device is cooled by cooling fan
Control via IR remote control
For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
1 x remote control, 1 x amplifier, 1 x user manual, 1 x battery
Power supply:
230 V AC, 50 Hz
Power consumption:
240.00 W
Output power:
120 W RMS
Power connection:
Fixed power supply cord with safety plug
Frequency range:
80 - 16000 Hz
S/N ratio:
>75 dB microphone >85 dB line
THD:
<0.5 % at 1 kHz
Cooling:
Cooling fan
Impedance:
4-16 ohms; public address systems 100V; Public address systems 70V
Control:
IR remote control
Audio player:
USB + SD
Zone output:
6 switchable zones
Circuitry:
Class AB
Controls:
Power on/off transient; Overvoltage; short-circuit
Connections:
Input: microphone via 2 x 6.3 mm plug (unbal.) Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 3 x stereo RCA 0.3 V Output: speaker via screw terminal Output: rec. via 1 x stereo RCA
Equalizer:
Master: 1 x 2-band tone control mono
Music format:
MP3
Number of files:
Max. 999
Available storage media:
USB devices/SD cards max. 32GB (FAT 32)
Housing design:
(19") 48.3 cm rack installation 2 U
Dimensions:
Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm
Weight:
9.25 kg
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
