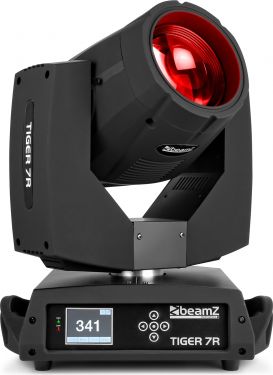

The Tiger 7R moving head is a hybrid moving head with a special built-in lens to swap between spot and beam mode. The moving head is equipped with 2 individual gobo wheels allowing you to
overlap gobos. A grand total of 23 different gobos give you enough possibilities to create astonishing aerial effects. If that is not enough, gobo wheel 1 has interchangeable gobos. - 230W 7R High Intensity discharge bulb included
- 16 or 20 DMX channels
- DMX and Stand-alone mode
- Master/slave synchronization
- Sound activated with adjustable sensitivity
- Auto mode
- Special lens to swap between spot and beam mode
- Double gobo wheels with shake and rotating functions
- Gobo Wheel 1: 7x rotating gobos + open (interchangeable)
- Gobo Wheel 2: 16x metal gobos + open
- 14 Colours + open
- Rotatable 9 facet prism
- Rotatable 24 facet prism
- Motorized focus
- Mechanical shutter and adjustable strobe effect
- Mechanical dimmer
- ON/OFF lamp control from the lighting desk
- Reset function from the lighting desk
- Control panel with LCD display
- Transport LOCK for Pan and Tilt
- Side handles for transportation
- DMX in/output via 3-pin XLR
- Powerconnector input/output
- Omega quick lock clamp included (2x)
- DMX cable included
- Powerconnector cable included
| Colour temperature | 8000K | | Light source | MSD 7R 230W bulb | | Colour wheel | 14 colours + open | | Dispersion: Beam | 7° | | Dispersion: Spot | 13° | | Illuminance | 84.000lx@10m | | Head movement: Pan | 540 | | Head movement: Tilt | 270 | | Static gobo: Quantity | 16 | | Rotating gobos: Quantity | 7 | | Gobo shake | Yes | | Interchangeable gobos | Yes | | Gobo dimensions | 24.73mm | | Prisma 1 | 8 Facet | | Frost filter | Yes | | Flash rate per second | 0 - 10Hz | | Modes | Automatic programs, DMX, Manual | | Sound to light mode | Yes | | DMX channels | 16, 20 | | DMX connector | 3-pin XLR | | Display | LCD | | IP rating | IP20 | | Cooling | Temperature controlled fan | | Power Plug | Power-connector | | Power consumption | 0.6 - 1.1A | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 395 x 330 x 510mm | | Weight | 16,50 | | Accessories | DMX cable, Mounting bracket, Power cable |
