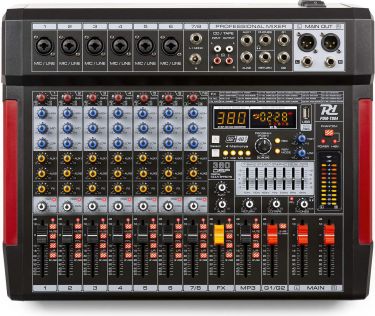

| | The PDM-T series is a series of stage mixers equipped with a 32-bit DSP effect processor, stereo 7-band graphic equalizer, BT streaming capability and USB input/output for easy connection to the computer for music recording, etc. It’s also possible to use the one click recording function for easy MP3 recordings on a USB stick. Each channel has its own gain control with treble, mid and bass controls. The microphone preamps offer selectable 48V phantom power on all microphone channels. The PDM-T mixers are designed to provide multi-channel mixing capabilities for bands, musicians, sound engineers, conferences, studio recording and a variety of other live stage applications. - 8-Channel multipurpose audio mixer
- MP3 recording/playing via full-duplex USB port (one click recording)
- BT receiver for audio streaming
- +48V phantom power
- Stereo 7-band graphic equalizer
- 380 DSP multi effects with 4 memories
- USB to PC for record and play music (USB interface)
- 8x Microphone-/line input (Combi XLR/Jack)
- High, Mid and Low control for each channel
- Adjustable Pan, aux return input and FX send output
- Adjustable headphone output
- Stereo balanced main outputs (XLR/6.3mm Jack)
- MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
- LED VU meter and Peak LEDs
| Product colour | Black | | Playback options | BT streaming, USB | | Input connections | 6.3mm Jack, RCA, USB, XLR (3-pin) | | Output connections | 6.3mm Jack, RCA, USB, XLR (3-pin) | | Presets | 380 | | DSP Resolution | 32-bit | | Frequency response | 20Hz - 20.000Hz | | THD | <0,5% | | Equalizer | 7-Bands | | Equalizer: Low | 80Hz +15dB | | Equalizer: High | 12KHz +15dB | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 377 x 455 x 120mm | | Weight (kg) | 4,85 |
