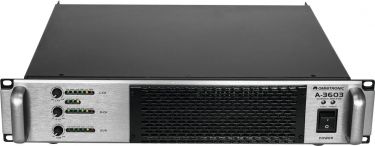

3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W
3-Kanal-PA-Verstärker mit Frequenzweiche - 4 Ohm: 1 x 2000 W, 2 x 800 W
3-channel PA amplifier with class D circuitry and switch mode power supply
Adjustable crossover frequency for satellites and subwoofer
2.1 operation or 3-channel operation selectable
3 level controls
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
(19) 48.3 cm rack installation 2 U
For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
685 W 1/8 power
Output power:
2 x 800 W RMS (4 ohms) 2 x 400 W RMS (8 ohms) 1 x 2000 W RMS (4 ohms) 1 x 1000 W RMS (8 ohms)
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>100 dB
THD:
<0.003 % at 1 kHz
Impedance:
Input: 20 kOhm , bal. Input: 10 kOhm , unbal.
Gain:
Channel 1 26 dB Channel 2 26 dB Channel 3 32 dB
Circuitry:
Class D
Slew rate:
>10 V/µs
Damping factor:
>500
Control elements:
Power switch, level control per channel, mode switch (2/3 channels), crossover frequency
Status LED:
Protect, clip, level meter, bridged
Connections:
Input: line via 3 x 3-pin XLR Link: line via 3 x 3-pin XLR Output: speaker via 3 x speaker built-in socket (F)
