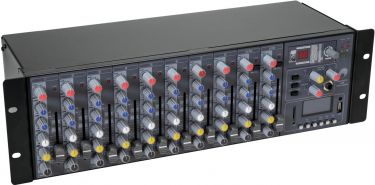

PRO 19" mixer with 12 channels, DSP FX unit and MP3 player
Professioneller 19"-Mixer mit 12 Kanälen, DSP-Effekteinheit und MP3-Player
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
6 mono input channels with gain control, 2-way EQ, pan control and channel fader
2 stereo input channels with 2-way EQ, balance control and channel fader
8 channel inserts
Tape input and output
Separate main mix and control room outputs
2 AUX send outputs
Adjustable headphones output
+48 V phantom power, can be switched centrally
4-digit stereo LED level display
(19) 48.3 cm rack installation 3 U
Digital signal processor 24 bit with 16 effects
Monochrome 2 digit 7-segment LED display
For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
Control via IR remote control
Monochrome LCD display
1 x mixer, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
27 W
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:
5 x 20 mm, T 0.5 A fuse replaceable
Frequency range:
20 - 20000 Hz
S/N ratio:
>89 dB
THD:
<0.05 % at 1 kHz
DSP:
Digital signal processor 24 bit with 16 effects
Audio player:
USB + SD
Display type:
Monochrome 2 digit 7-segment LED display
Control elements:
Phantom power switch, audio player, encoder
Status LED:
Power, master level meter, clip, phantom power
Connections:
Input: microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Input: AUX returns via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 2 x 6.3 mm jack socket (stereo) mounting version Output: 2-Track via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm plug (unbal.) Insert: 8 x 6.3 mm jack socket (stereo) mounting version Link: line via 1 x USB B (F) mounting version
Channels:
Input channel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol Input channel: 1 x stereo with line-USB switch via jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol Input channel: 1 x stereo with line-player switch via jack, channel control via rotary dial, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol Master output: 1 x stereo via XLR, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial
Material:
Metal
Color:
Black
Housing design:
(19") 48.3 cm rack installation 3 U
Dimensions:
Width: 48.3 cm Depth: 18 cm Height: 13.35 cm
Weight:
4.07 kg
Remote control
Battery:
1 x button cell 3.0 V CR2025 lithium manganese built-in
