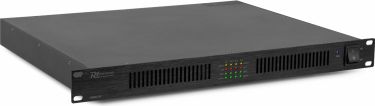

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | PMDA4120 4-Channel Class-D Amplifier 100V/8Ohm 4x 120W 10B05E60
Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.
 |  In stock
Delivery time: 1 - 3 workdays. |
This article is in stock, but not in our shop.
You are welcome to write in the comment field that you want to pick up the article yourself. We will contact you when the article is ready for collection in our shop.
Shipment charges are deducted when you collect the article in our shop. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | The PMDA series is a range of 1U Class-D high power amplifiers with 4 outputs, each with separate volume controls. Powered by advanced switching power technology, these amplifiers stands out with its remarkable energy efficiency, consuming minimal power while delivering exceptional performance and generating less heat. Efficiency meets intelligence with the automatic standby feature. After one minute of no signal input detection, the amplifier will seamlessly switch to standby mode, conserving energy. Once a new signal is detected, it will immediately wake up, ready to deliver exceptional audio quality. Rest assured that these amplifiers are protected at all times, it incorporates complete short circuit, overload, high temperature, clip, and DC protection mechanisms, ensuring the longevity and reliability of your investment. Perfect for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping center or any other public space. - 4-Channel public address system
- High efficient Class-D Power Amplifier
- Lightweight and compact 1U design
- Automatic standby feature
- Four channel separate speaker outputs 8Ω/100V
- Rate power output of 4x 120W
- 4 Balanced inputs per channel
- Each input with separate gain control
- On all channels, high pass option at 70Hz
- Convenient dip switch pre-setting on the rear panel
- Complete short circuit, overload, high temp and clip protection
- Ground lift switch
- Euro block screw terminals with lock possibility
- Suitable for 19 Mounting
| Product colour | Black | | Output channels | 4 | | Output power: RMS @ 4 Ohm per channel | 200W | | Output power: RMS @ 8 Ohm per channel | 120W | | Output power: RMS @ 100V per channel | 120W | | Impedance | 4 Ohm, 8 Ohm, 16 Ohm, 100V | | Frequency response | 20Hz - 20.000Hz / 70Hz - 10.000Hz (high pass) | | Signal-to-noise ratio | >80dB | | THD | <0,1% | | Input level: Line | 750mV | | Power consumption | 0.324 - 0.395A | | Power supply | 100-240VAC 50/60Hz | | Dimensions (L x W x H) | 375 x 482 x 44mm | | Weight (kg) | 6,45 | | Included accessories | Power cable |
