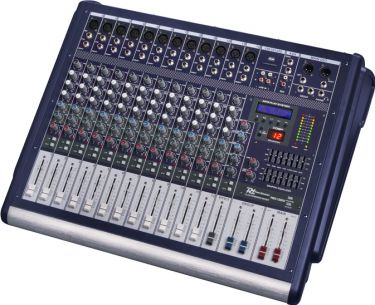

A 12 channel live mixer with built-in amplifier and DSP effect processor for bands, studio and stage applications. Each channel has a 3-band equalizer while output channels have a 7-band graphic
equalizer for a colourful sound. With MP3, phantom supply, Send/return function etc. - 2x250W rms amplifier
- USBport / SD slot in
- DSP effect processor
- Send / Return application
- 3-Band equalizer per channel
- Effect- and PAN control
- 7-Band graphic Master-equalizer
- Phantom power
- Display for MP3 and DSP
- Record output
- XLR- and Jack (6.35mm) in- and outputs
- 2x RCA line in
| Output power:4 Ohms | 2x250W rms | | Frequency response | 50Hz-18kHz | | THD | <0.1% | | Signal to noise ratio | >102dB | | Equalizer | +/-15dB per channel + 7 Band graphic | | Input:Line | 150mV | | Input:Mic | 1.5mV | | Output level | +/-1V | | Connector | XLR- Jack-, RCA | | Power Supply | 230Vac/50Hz | | Dimensions | 530 x 645 x 155mm | | Weight | 17.7kg |

 |
