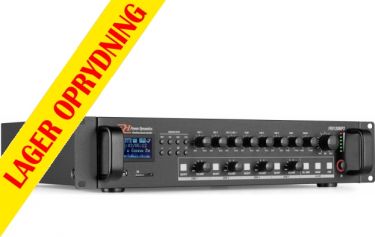

The PDV series is a range of fully featured, high power mixer amplifiers with 4 zone outputs, each with separate 6-step volume controls. This series amplifiers features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. Mic 1 channel has an override over all inputs and MP3 player. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. All models are designed with complete protection from overload to avoid any damage. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping centre or any other public space.
PA amplifier with 4 zones, independently selectable and volume control
Integral media player with FM Tuner, USB and SD slot
BT receiver for audio streaming
Overload protection
Chime and Fire alarm over all channels
Zone volume control over 6 steps
Bass/Treble control
3x mic inputs and 3x line inputs
Telephone paging
19 Mounting with the brackets possible (2U)
Emergency operation by 24V battery (not supplied)
Product colour
Black
Playback options
BT streaming, USB, SD, FM radio
Output channels
4
Output power: RMS
120W
Impedance
8 Ohm, 100V
Frequency response
50Hz - 19.000Hz
Signal-to-noise ratio
>70dB
THD
<1%
Signal-to-noise ratio: Line
>85dB
Signal-to-noise ratio: Mic
>80dB
Input level: Line
400mV
Input level: Mic.
10mV
Power supply
220-240VAC 50Hz
Dimensions (L x W x H)
330 x 420 x 88mm
Weight (kg)
9,00
Included accessories
Mounting bracket
Bundle no.: 10004642
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 8 x CSPB8 Ceiling Speaker 100V 8" White 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M 1 x CX334-3 Cable 3.5mm Stereo- 2x RCA Male 3m 1 x CX340-1 Cable 2x RCA Male - 2x RCA Male 1.5m
Bundle no.: 10041359
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 2 x BC50V White Speaker Pair 100V 8 Ohm 5,25" 120W - IPX5 1 x BC50V Black Speaker Pair 100V 8 Ohm 5,25" 120W - IPX5 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
Bundle no.: 10103080
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 2 x NCSP6B Low Profile Ceiling Speaker 100V 6.5" Black 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
Bundle no.: 10103091
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 8 x CSPB8 Ceiling Speaker 100V 8" White 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
Bundle no.: 10103122
Set consisting of: 1 x PDV120MP3 PA Mixer Amplifier 120W/100V 4 zones 2 x NCSP6 Low Profile Ceiling Speaker 100V 6,5" White 1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
