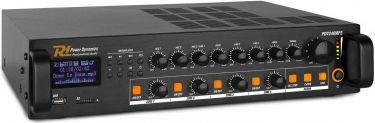

| | The PDV series is a range of fully featured, high power mixer amplifiers with 4 zone outputs, each with separate 6-step volume controls. This series amplifiers features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. Mic 1 channel has an override over all inputs and MP3 player. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. All models are designed with complete protection from overload to avoid any damage. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping centre or any other public space. - PA amplifier with 4 zones, independently selectable and volume control
- Integral media player with FM Tuner, USB and SD slot
- BT receiver for audio streaming
- Overload protection
- Chime and Fire alarm over all channels
- Zone volume control over 6 steps
- Bass/Treble control
- 3x mic inputs and 3x line inputs
- Telephone paging
- 19 Mounting with the brackets possible (2U)
- Emergency operation by 24V battery (not supplied)
| Product colour | Black | | Playback options | BT streaming, USB, SD, FM radio | | Output channels | 4 | | Output power: RMS | 240W | | Impedance | 8 Ohm, 100V | | Frequency response | 50Hz - 19.000Hz | | Signal-to-noise ratio | >70dB | | THD | <1% | | Signal-to-noise ratio: Line | >85dB | | Signal-to-noise ratio: Mic | >80dB | | Input level: Line | 400mV | | Input level: Mic. | 10mV | | Power supply | 220-240VAC 50Hz | | Dimensions (L x W x H) | 380 x 420 x 88mm | | Weight (kg) | 11,00 | | Included accessories | Mounting bracket |
 pdf



| | | | |
Bundle no.: 10103088 Set consisting of:
1 x PDV240MP3 PA Mixer Amplifier 240W/100V 4 zones
4 x NCSP6 Low Profile Ceiling Speaker 100V 6,5" White
2 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
|
| |
Bundle no.: 10041361 Set consisting of:
1 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
1 x PDV240MP3 PA Mixer Amplifier 240W/100V 4 zones
20 x FCS5 Low Profile Ceiling Speaker 100V 5,25"
|
| |
Bundle no.: 10103100 Set consisting of:
1 x PDV240MP3 PA Mixer Amplifier 240W/100V 4 zones
4 x NCSP6B Low Profile Ceiling Speaker 100V 6.5" Black
2 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
|
| |
Bundle no.: 10100732 Set consisting of:
1 x PDV240MP3 PA Mixer Amplifier 240W/100V 4 zones
5 x HS40 Horn Speaker 40W 100V - IPX6
1 x TM370 Paging Microphone
2 x RX12 Speaker cable Round 2 x 1.5mm² black 100M
1 x CX35-1 Cable XLR male/female 1.5m Black
|
| |
