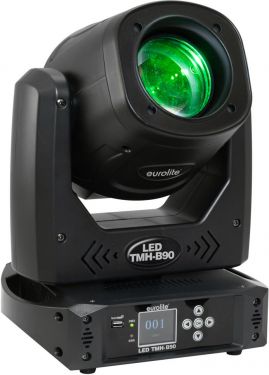

LED moving head beam with color wheel, static gobo wheel, prism and focus
Rotating 8-facet prism with variable speed
Electronic dimmer
frost filter
Mains input and output for power linking up to 8 units
1 powerful LED 90 W COB (chip-on-board) cold white (CW)
Positioning within 540° PAN and 200° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Color wheel with 7 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobo wheel with static gobos, 13 gobos und open shake effect
Integrated Showprograms
Can be operated in 14 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain; EASY SHOW 3
Flicker-free
Effect: Single Beam
With a beam angle of 3°
Good color rendering index (CRI)
LCD display
1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
125 W
IP classification:
IP20
Protection class:
Class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Device fuse:
5 x 20 mm, T 2 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 90 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
200° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:
540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:
2 - 20 Hz
Equipment:
Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold; frost filter
Color generation:
Color wheel with 7 dichroic filters plus open
Gobos:
Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:
14
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain; EASY SHOW 3
Beam angle:
3°
Beam angle (1/2 peak):
3°
Color rendering index (CRI):
80 Ra
Illuminance in Lux (lx):
Cold white (CW) 3m: 33839 lx, 6m: 10454 lx
Housing color:
Black
Display type:
LCD display
Dimensions:
Width: 25,5 cm Depth: 20,5 cm Height: 33,0 cm
Weight:
6,55 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
