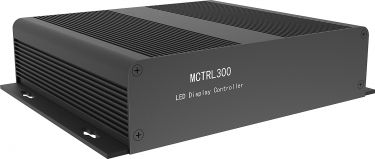

MCTRL300 Video Display Controller

MCTRL300 is NovaStar’s independent control unit from the M3 Series, and supports audio and video input.

The M3 undertakes encoding and data processing, sending the audio and video to the display. Asingle card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience. DVI video inputAudio transmissionDual-Ethernet output, with dual-Ethernet cablehot backup and multiple controller hot backupUSB port control, for cascading and control of multiple units1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz,1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent powersupply

• 1 × DVI input
• 1 × audio input
• 1 × type-B USB control port
• UART control ports to cascade devices for uniform control.
• Dual Ethernet outputs.
• Supports the new generation of NovaStar calibration technology, which is fast and efficient.
• 1 × light sensor connector.
• Supports resolutions up to 2048×668@60Hz and downward compatibility.
• Supports a variety of video formats.
