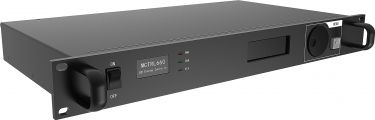

MCTRL660 Video Display Controller

MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz.

MCTRL600utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, andmore. True hot backup, No flickering, no blackout
One-button upload of settings and parameters 12bit/10bit HDMI input, DVI inputHDMI.DVI loop output for cascading or monitoringHDCP Blue-raydirectly input8bit video source loading capacity of 1920×1200@60Hz.12bit video source loading capacity of 1440×900@60HzSupport for custom resolutions: 3840 pixels of H resolution, 3840 pixels of Vresolution
Supports cascading for control of multiple units
Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4

• 1 × DVI input
• 1 × HDMI input
• 4 × Gigabit Ethernet outputs
• Supports the new generation of NovaStar calibration technology, which is fast and efficient.
• Supports resolutions up to 1920×1200@60Hz and downward compatibility.
• Multiple controllers can be cascaded.
• Supports 18-bit grayscale processing and display.
• Manual screen brightness adjustment, which is fast and convenient.
• Quick screen configuration without using a computer.
• Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
• Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
• Supports a variety of video formats
