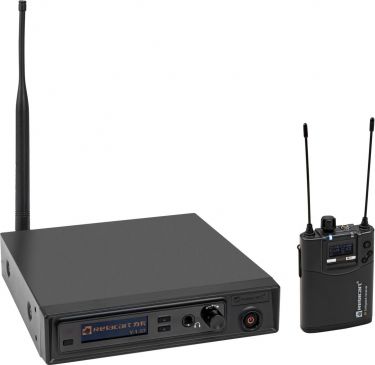

Relacart PM-320 In-Ear System 626-668 MHz

10B04B08

6.149,00DKK

Prisen er inkl. 25% dansk moms

Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.

På lager
Leveringstid: 1 til 3 hverdage.

Denne vare er på lager, men ikke på vores lille butikslager!
Du er velkommen til at skrive i kommentarfeltet på din ordre at du ønsker at afhente varen, så kontakter vi dig når varen er klar til afhentning i vores butik.
Vi modregner selvfølgelig fragten når du kommer.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

In-ear stereo system with diversity technology, 626-668 MHz

Transmitter and receiver also available separately
Can also be used as audio transmission system with extremely low latency
Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
Pilot frequency squelch technology delete wireless RF interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Stereo or mono/mix mode
Lock function for prevents undesired changes to settings
RF output power Hi/Low adjustable
2 line inputs via balanced combo mounting jacks XLR/6.3 mm
2 feed-through outputs (loop)
Adjustable headphones output
Operating range up to 100m with line-of-sight
OLED display
Desktop console housing
(19) 48.3 cm rack installation possible 1 U
1 x transmitter, 1 x antenna, 1 x external mains adapter, 3 x mounting bracket, 8 x screw, 2 x jack cable, 3 x user manual, 1 x declaration of conformity
Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
Sturdy all-metal housing with soft-touch controls, applicable for touring
Diversity technology for high reception quality
Pilot frequency squelch technology delete wireless RF interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Stereo or mono/mix mode
Balance (left, right) adjustable
Limiter and high frequency boost
Lock function for prevents undesired changes to settings
Operating range up to 100m with line-of-sight
Up to 5 transmitters can be operated in parallel without interference
OLED display
Charge status indicator
1 x receiver, 1 x user manual, 1 x declaration of conformity

Weight:	1.62 kg
RELACART PM-320T In-Ear Stereo Transmitter 626-668 MHz
Type:	In-ear monitor
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	2 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:	25 - 15000 Hz
S/N ratio:	>100 dB
THD:	<0.9 % at 1 kHz
Range:	Range up to 100m with line-of-sight
Frequency band:	UHF 628 - 668 MHz
Switching bandwidth:	32 MHz
Frequency stability:	± 0.005 %
RF power output:	30 mW (LO); 50 mW (HI)
Modulation:	FM, stereo
Frequency selection:	317 switchable frequencies In 20 groups
Display type:	OLED display
Connections:	Antenna via 1 x BNC (F) Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Material:	Metal
Color:	Black
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 26 cm Depth: 20 cm Height: 4.4 cm
Weight:	1.51 kg
RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz
Battery:	2 x Mignon (AA) (not included)
Diversity:	Antenna diversity
Parallel mode:	Max. 5 transmitter
Display:	Charge status indicator , frequency , channel
Status LED:	Antenna A/B
Connections:	Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Material:	Aluminum
Dimensions:	Width: 6.5 cm Depth: 2.3 cm Height: 9 cm
Weight:	0.11 kg
