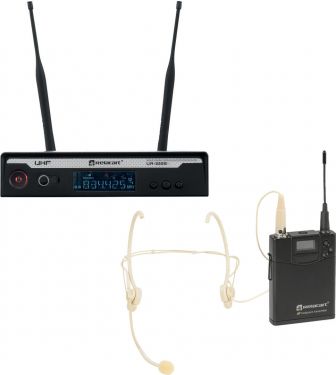

Relacart Set UR-222S Bodypack with HM-600S Headset

10B03C32

3.489,00DKK

Prisen er inkl. 25% dansk moms

Leveringstid: 4 til 8 hverdage.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
2 detachable BNC antennas allow for use with the R-14D antenna divider
Multicolor LCD display
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
Operating range up to 80m
Desktop console housing
(19) 48.3 cm rack installation possible 1 U
Charge status indicator
1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
Durable aluminum alloy housing, applicable for touring
Pilot frequency squelch technology delete wireless RF interference
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Adjustable input gain
RF output power Hi/Low adjustable
Lock function for prevents undesired changes to settings
OLED display
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 80m
Polar pattern: Omnidirectional
For further information about this product, please refer to the Data Sheet under Downloads
1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

Weight:	2,17 kg
RELACART UR-222S 1-Channel UHF Receiver
Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	3 W
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	45 - 18000 Hz
S/N ratio:	>105 dB
THD:	<0,7 % at 1 kHz
Display type:	Multicolor LCD display
Display:	Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Control elements:	Groundlift selector, menu, navigation keys
Connections:	Antenna via 2 x BNC (F) 8 V Output: Microphone via 1 x 3-pin XLR (M) mounting version Output: Microphone via 1 x 6.3 mm plug (unbal.)
Frequency band:	UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:	90 Switchable frequencies In 10 groups with up to 10 preset frequencies each
Modulation:	FM
Frequency stability:	± 0,005 %
Range:	Range up to 80m
Switching bandwidth:	11 MHz
Switch:	On/off switch
Diversity:	Antenna diversity
Material:	Metal
Color:	Black
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 20 cm Depth: 26 cm Height: 4,4 cm
Weight:	1,95 kg
RELACART UT-222 Bodypack with HM-600S Headset
Weight:	210 g
Transmitter
Type:	Bodypack with microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Battery:	2 x Mignon (AA) (not included)
Gain:	0 dB -6 dB -12 dB
Display type:	OLED display
Control elements:	Transmitter power switch (high-low)
Connections:	Output: Mini XLR (M) 4-pin mounting version
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
RF power output:	10 mW (LO); 40 mW (HI)
Switch:	On/off/mute switch
Material:	Aluminum
Dimensions:	Width: 6,6 cm Depth: 2,3 cm Height: 8,4 cm
Weight:	174 g
Microphone
Type:	Headset microphone
Power supply:	2-10 V DC
Cable length:	1,2 m
Capsule type:	Condenser Size: Ø 5 mm x 6 mm
Polar pattern:	Omnidirectional
Frequency range:	50 - 18000 Hz
Sensitivity:	-47 dB
Impedance:	1800 Ohm
Connector type:	Mini XLR (F) 4-pin
Color:	Skin-colored
Weight:	28 g
