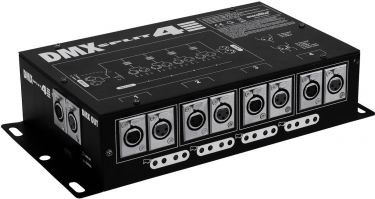

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets Splitter auf 4 galvanisch getrennte Ausgänge, 3-polige & 5-polige XLR-Buchsen - DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Each DMX output with independent driver and status indicator
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 20 W | | Power connection: | Fixed power supply cord with safety plug | | DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version | | DMX output: | 4 x 3-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 4 x 5-pin XLR (F) mounting version separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass | | Control elements: | Bypass/terminating resistor switch | | Dimensions: | Width: 32.5 cm Depth: 19 cm Height: 8 cm | | Weight: | 2.55 kg |

   |
På lager
