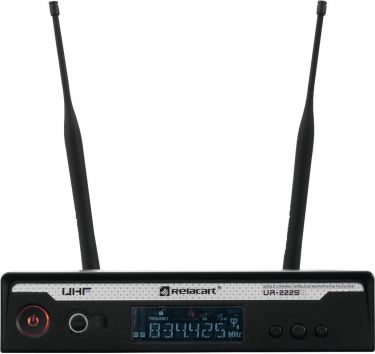

Multifrequency wireless receiver with high-quality diversity reception
Multifrequenz-Empfänger mit True-Diversity-Technik
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Pilot frequency squelch technology delete wireless RF interference
Automatic frequency scan (AFS) finds interference-free channels
Easy and error-free synchronization between receiver and transmitter via infrared signal
2 detachable BNC antennas allow for use with the R-14D antenna divider
(19) 48.3 cm rack installation possible 1 U
Operating range up to 80m
UHF 863 - 865 MHz License-free and approved in Europe
UHF 823 - 832 MHz License-free and approved in large parts of Europe
Up to 9 transmitters can be operated in parallel without interference
Multicolor LCD display
Charge status indicator
Desktop console housing
1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
Type:
Receiver
Power supply:
100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:
3 W
Power connection:
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
1
Frequency range:
45 - 18000 Hz
S/N ratio:
>105 dB
THD:
<0.7 % at 1 kHz
Range:
Range up to 80m
Frequency band:
UHF 863 - 865 MHz; UHF 823 - 832 MHz
Diversity:
Antenna diversity
Switching bandwidth:
11 MHz
Frequency stability:
± 0.005 %
Parallel mode:
Max. 9 transmitter
Modulation:
FM
Frequency selection:
90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Display type:
Multicolor LCD display
Display:
Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency
Control elements:
Groundlift selector, menu, navigation keys
Connections:
Antenna via 2 x BNC (F) 8 V Output: microphone via 1 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.)
Switch:
On/off switch
Material:
Metal
Color:
Black
Housing design:
Desktop console housing (19") 48.3 cm rack installation possible 1 U
