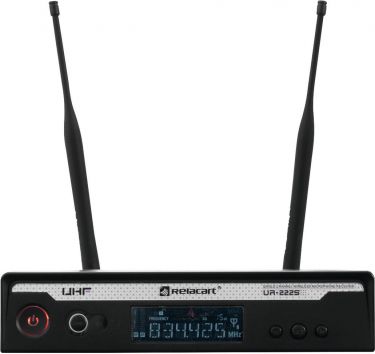

| | Multifrequency wireless receiver with high-quality diversity reception Multifrequenz-Empfänger mit True-Diversity-Technik - 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- (19) 48.3 cm rack installation possible 1 U
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be operated in parallel without interference
- Multicolor LCD display
- Charge status indicator
- Desktop console housing
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
| Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA | | Power consumption: | 3 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >105 dB | | THD: | <0.7 % at 1 kHz | | Range: | Range up to 80m | | Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz | | Diversity: | Antenna diversity | | Switching bandwidth: | 11 MHz | | Frequency stability: | ± 0.005 % | | Parallel mode: | Max. 9 transmitter | | Modulation: | FM | | Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each | | Display type: | Multicolor LCD display | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency | | Control elements: | Groundlift selector, menu, navigation keys | | Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 1 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.) | | Switch: | On/off switch | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 20 cm Depth: 26 cm Height: 4.4 cm | | Weight: | 1.95 kg |

| | |
