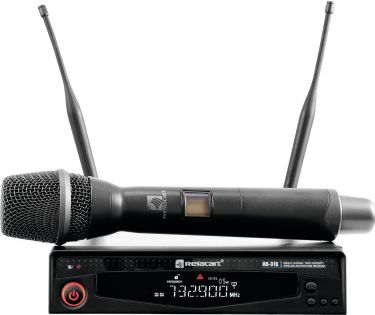

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Relacart HR-31S 1-channel True Diversity System 10A13F32 | 13055202
Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.
 |  In stock
Delivery time: 1 - 3 workdays. |
This article is in stock, but not in our shop.
You are welcome to write in the comment field that you want to pick up the article yourself. We will contact you when the article is ready for collection in our shop.
Shipment charges are deducted when you collect the article in our shop. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | Wireless microphone system with PC control, 731-790 + 823-832 MHz Funkmikrofonsystem mit PC-Ansteuerung, 731-790 + 823-832 MHz - Receiver and microphone also available separately
- Charge status indicator
- Multifrequency wireless receiver with high-quality true diversity reception
- Real-time monitoring and data management using RWW PC software
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
- Up to 32 units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- (19) 48.3 cm rack installation possible 1 U
- Operating range up to 80m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 731 - 790 MHz License-free and approved in large parts of Europe
- Up to 12 transmitters can be operated in parallel without interference
- Multicolor LCD display
- Charge status indicator
- The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the dongle (optional)
- Desktop console housing
- 1 x device, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 1 x user manual, 1 x declaration of conformity, 1 x bag, 3 x mounting bracket, 10 x screw
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Cardioid
- Operating range up to 80m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 731 - 790 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency | | Weight: | 2.34 kg | | RELACART HR-31S 1-channel True Diversity Receiver | | | Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC | | Power consumption: | 3.8 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >108 dB | | THD: | <0.6 % at 1 kHz | | Range: | Range up to 80m with line-of-sight | | Frequency band: | UHF 823 - 832 MHz; UHF 731 - 790 MHz | | Diversity: | True diversity | | Switching bandwidth: | 68 MHz | | Frequency stability: | ± 0.005 % | | Parallel mode: | Max. 12 transmitter | | Modulation: | FM | | Frequency selection: | 292 switchable frequencies In 10 groups with up to 25 preset frequencies each and In 8 groups with up to 7 preset frequencies each | | Display type: | Multicolor LCD display | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency , channel , Mute | | Control elements: | Menu, navigation keys, groundlift selector | | Connections: | Antenna via 2 x BNC (F) 8 V Output: line via 1 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm jack socket (stereo) mounting version Link: 2 x RJ14 (F) mounting version | | Switch: | On/off switch | | Material: | Metal | | Color: | Black | | PC connect: | RELACART RWW software with dongle (optional) via RJ14 (F) mounting version | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 20 cm Depth: 26 cm Height: 4.3 cm | | Weight: | 2.05 kg | | RELACART H-31 Microphone for HR-31S system | | | Type: | Hand-held transmitter | | Power supply: | 3V DC | | Power connection: | Battery/battery pack | | Capsule type: | Dynamic | | Polar pattern: | Cardioid | | Battery: | 2 x Mignon (AA) (not included) | | Frequency range: | 100 - 18000 Hz | | Max. SPL: | 145 dB | | RF power output: | 10 mW (LO); 40 mW (HI) | | Display type: | OLED display | | Display: | Frequency , channel , charge status indicator , Mute | | Switch: | On/off/mute switch | | Material: | Aluminum | | Dimensions: | Length: 26.5 cm Diameter: Ø 5.4 cm | | Weight: | 0.29 kg |

| | | | |
