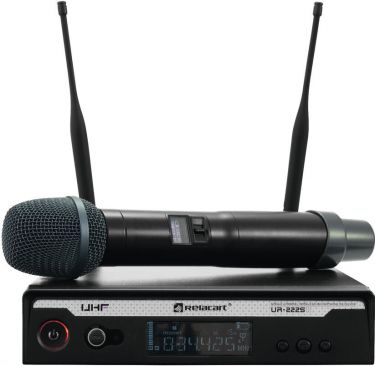

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Relacart UR-222S 1-channel UHF System 823-832 + 863-865 MHz 10A15C00 | 13055207
Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.
 |  In stock
Delivery time: 1 - 3 workdays. |
This article is in stock, but not in our shop.
You are welcome to write in the comment field that you want to pick up the article yourself. We will contact you when the article is ready for collection in our shop.
Shipment charges are deducted when you collect the article in our shop. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | Diversity wireless microphone system, 823-832 MHz + 863-865 MHz True-Diversity-Funkmikrofonsystem, 823-832 MHz + 863-865 MHz - Charge status indicator
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x user manual, 1 x declaration of conformity, 1 x bag
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- (19) 48.3 cm rack installation possible 1 U
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be operated in parallel without interference
- Multicolor LCD display
- Charge status indicator
- Desktop console housing
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency | | Weight: | 2.24 kg | | RELACART UR-222S 1-channel UHF Receiver 823-832 + 863-865 MHz | | | Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA | | Power consumption: | 3 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >105 dB | | THD: | <0.7 % at 1 kHz | | Range: | Range up to 80m | | Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz | | Diversity: | Antenna diversity | | Switching bandwidth: | 11 MHz | | Frequency stability: | ± 0.005 % | | Parallel mode: | Max. 9 transmitter | | Modulation: | FM | | Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each | | Display type: | Multicolor LCD display | | Control elements: | Groundlift selector, menu, navigation keys | | Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 1 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.) | | Switch: | On/off switch | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 20 cm Depth: 26 cm Height: 4.4 cm | | Weight: | 1.95 kg | | RELACART UH-222D Microphone 823-832 + 863-865 MHz | | | Type: | Hand-held transmitter | | Power supply: | 3V DC | | Capsule type: | Dynamic | | Polar pattern: | Super cardoid | | Battery: | 2 x Mignon (AA) (not included) | | Frequency range: | 120 - 16000 Hz | | Sensitivity: | -53 dB | | Max. SPL: | 145 dB | | RF power output: | 5 mW (LO); 10 mW (HI) | | Display type: | OLED display | | Display: | Charge status indicator , frequency , channel | | Control elements: | Gain-switch (high-mid-low), transmitter power switch (high-low) | | Switch: | On/off/mute switch | | Material: | Aluminum | | Dimensions: | Length: 26 cm Diameter: Ø 5.4 cm | | Weight: | 0.28 kg |
   | | | | |
