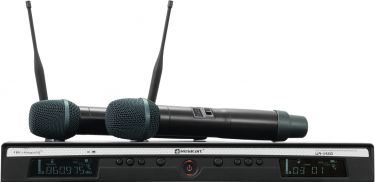

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Relacart UR-260D 2-channel UHF System 823-832 + 863-865 MHz 10A18F84 | 13055212
Alle varer købt i november og december kan byttes helt frem til 31. januar 2026.
 |  In stock
Delivery time: 1 - 3 workdays. |
This article is in stock, but not in our shop.
You are welcome to write in the comment field that you want to pick up the article yourself. We will contact you when the article is ready for collection in our shop.
Shipment charges are deducted when you collect the article in our shop. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | System with DSP for microphone modeling and PC software, 823-832 + 863-865 MHz System mit DSP für Mikrofon-Modeling & PC-Software, 823-832 + 863-865 MHz - 1 x receiver, 2 x antenna, 1 x external mains adapter, 2 x microphone, 1 x jack cable, 1 x mounting bracket, 1 x bag, 1 x user manual, 1 x declaration of conformity
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Multiple units can be linked with network cables
- Lock function for prevents undesired changes to settings
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Rugged metal housing
- (19) 48.3 cm rack installation possible 1 U
- Digital signal processor 96kHz, 24 bit
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Up to 9 transmitters can be operated in parallel without interference
- Multicolor LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing
- 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-022
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Super cardoid
- Operating range up to 80m
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- OLED display
- Charge status indicator
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Type: | Wireless set | | Weight: | 2.97 kg | | RELACART UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz | | | Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz 12V DC 1000 mA | | Power consumption: | Max. 9 W | | Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 2 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >100 dB | | THD: | <0.5 % at 1 kHz | | Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version | | DSP: | Digital signal processor 96kHz, 24 bit | | Range: | Range up to 80m | | Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz | | Diversity: | Antenna diversity | | Switching bandwidth: | 11 MHz | | Frequency stability: | ± 0.0005 % | | Parallel mode: | Max. 9 transmitter | | Modulation: | FM | | Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each | | Display type: | Multicolor LCD display | | Control elements: | Power switch, groundlift selector, menu, navigation keys | | Connections: | Antenna via 2 x BNC (F) 8 V Output: microphone via 2 x 3-pin XLR (M) mounting version Output: line via 1 x 6.3 mm plug (unbal.) | | Material: | Metal | | Color: | Black | | PC connect: | RELACART Magic EQ software via RJ-45 (F) mounting version | | Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 41 cm Depth: 26 cm Height: 4.3 cm | | Weight: | 2.40 kg | | RELACART UH-222D Microphone 823-832 + 863-865 MHz | | | Type: | Hand-held transmitter | | Power supply: | 3V DC | | Capsule type: | Dynamic | | Polar pattern: | Super cardoid | | Battery: | 2 x Mignon (AA) (not included) | | Frequency range: | 120 - 16000 Hz | | Sensitivity: | -53 dB | | Max. SPL: | 145 dB | | RF power output: | 5 mW (LO); 10 mW (HI) | | Display type: | OLED display | | Display: | Charge status indicator , frequency , channel | | Control elements: | Gain-switch (high-mid-low), transmitter power switch (high-low) | | Switch: | On/off/mute switch | | Material: | Aluminum | | Dimensions: | Length: 26 cm Diameter: Ø 5.4 cm | | Weight: | 0.28 kg |

| | | | |
